1 Year Official Warranty
5.1ch cinematic power—feel it move with Dolby Atmos®

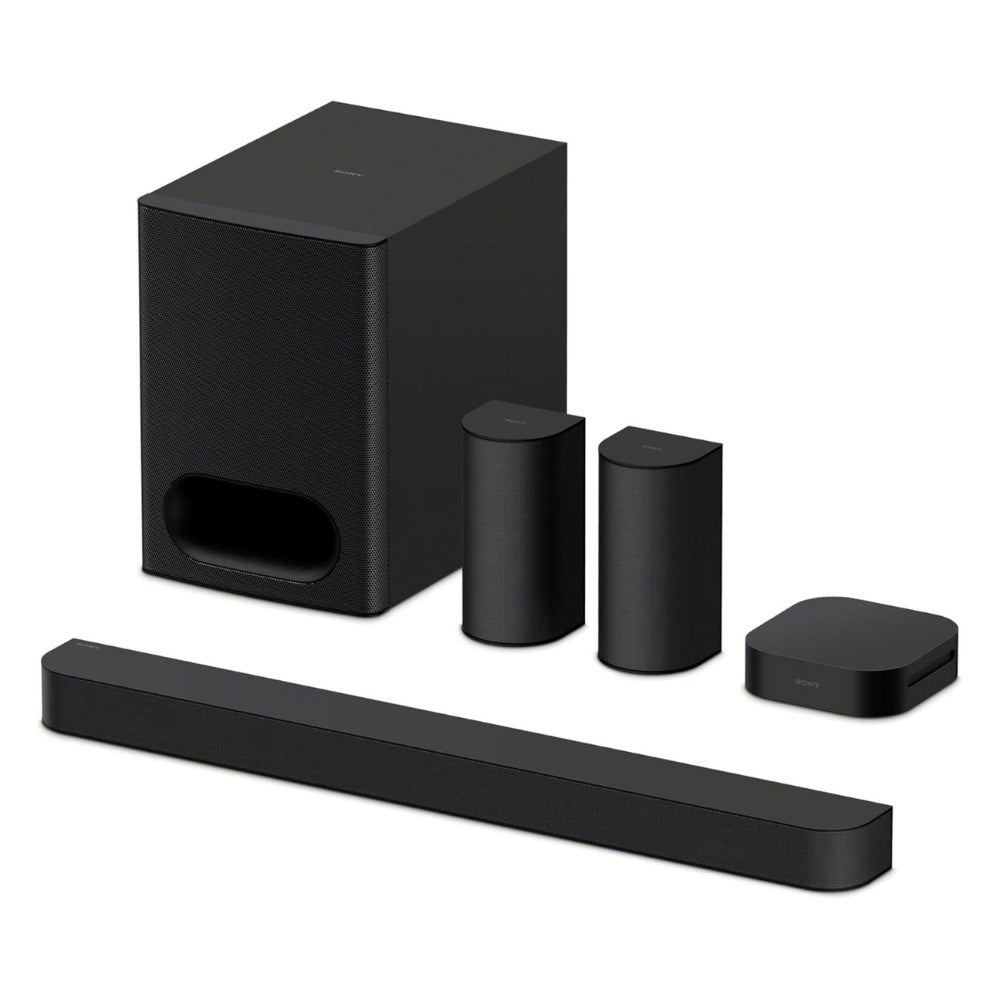

Turn up the energy with 5.1ch surround sound in minutes with easy setup. Powered by Dolby Atmos® and DTS:X®, this all-in-one system—soundbar, subwoofer and wireless rear speakers—delivers sound that dances around you.
Specs
|
WHAT'S IN THE BOX?
|
AC Cord
Batteries for remote commander Foot HDMI Cable Quick Setup Guide Reference Guide Remote Control Wall mounting template |
||||
|---|---|---|---|---|---|
|

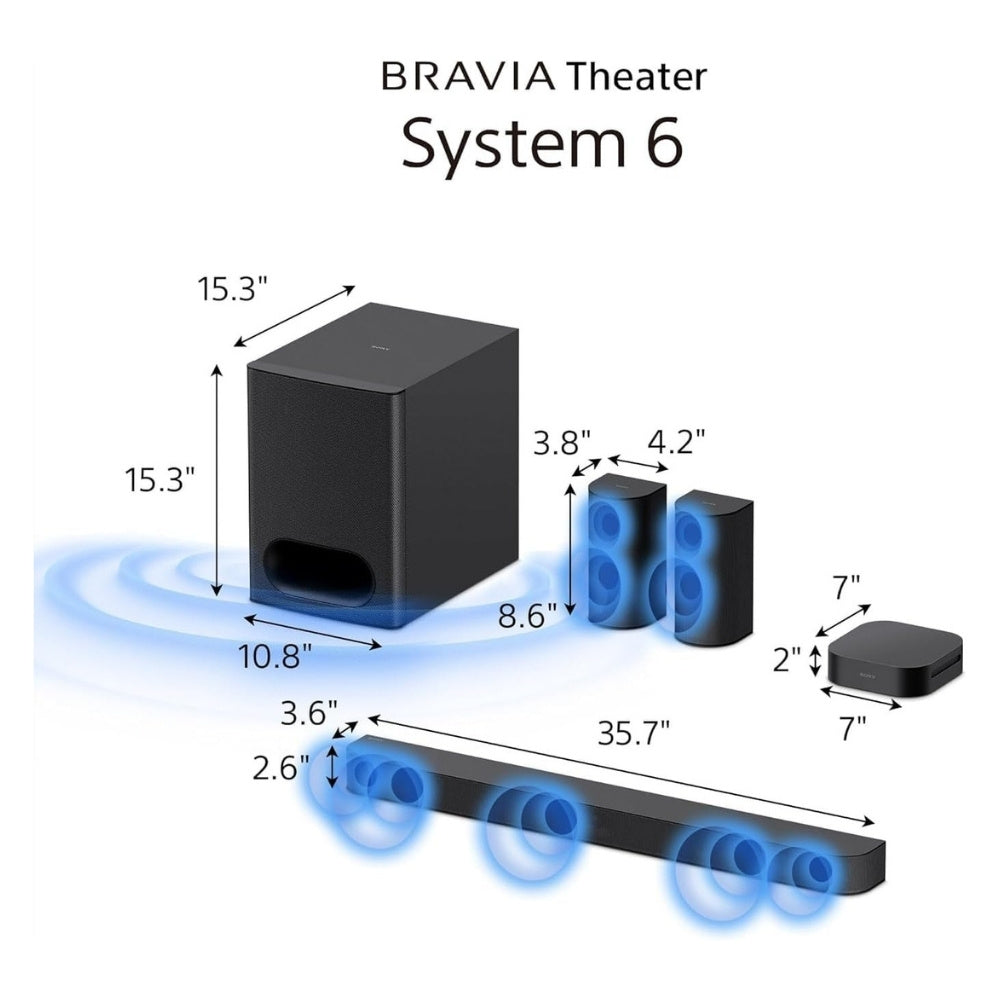

Size & Weight
|
|||||
|
MAIN UNIT SIZE - BODY ONLY (W x H x D)
|
907 x 64 x 90 mm
|
||||
|
MAIN UNIT SIZE - BODY ONLY (W x H x D) (INCH)
|
35 3/4 in x 2 5/8 in x 3 5/8 inch
|
||||
|
MAIN UNIT WEIGHT - BODY ONLY
|
2.6 kg
|
||||
|
MAIN UNIT WEIGHT - BODY ONLY (OZ)
|
5 lb 12 oz
|
||||
|
SUBWOOFER SIZE (W x H x D) (MM)
|
275 x 388 x 388 mm
|
||||
|
SUBWOOFER WEIGHT (KG)
|
11.6 kg
|
||||
|
Rear Speaker Size (W X H X D) (MM)
|
106 x 216 x 98 mm
|
||||
|
REAR SPEAKER SIZE(W X H X D) (INCH)
|
4 1/4 in x 8 5/8 in x 3 7/8 inch
|
||||
|
Rear Speaker Weight (kg)
|
0.89 kg
|
||||
|
REAR SPEAKER WEIGHT (OZ)
|
1 lb 16 oz
|
||||
|
AMP BOX(W X H X D)
|
175 x 52 x 175 mm
|
||||
|
AMP BOX(W X H X D)(INCH)
|
7 in x 2 1/8 in x 7 inch
|
||||
|
AMP BOX(KG)
|
0.76 kg
|
||||
|
AMP BOX(OZ)
|
1 lb 11 oz
|
||||
|
Amplifier
|
|||||
|
Amplifier Type
|
Digital Amplifier
|
||||
|
Amplifier Channels
|
5.1 ch
|
||||
|
Power Output (Total)
|
1000W
|
||||
|
Subwoofer
|
|||||
|
Subwoofer Type
|
Wired
|
||||
|
Interface
|
|||||
|
Input and Output Terminals
|
Optical audio input
|
||||
|
BLUETOOTH® VERSION
|
Bluetooth® version: 5.3
|
||||
|
BLUETOOTH® SUPPORTED CODECS
|
SBC,AAC
|
||||
|
HDMI
|
|||||
|
Number of Input/Output
|
Input / Output: - / 1 (eARC / ARC)
|
||||
|
eARC
|
Yes
|
||||
|
BRAVIA Sync
|
Yes
|
||||
|
HDMI CEC
|
Yes
|
||||
|
Audio Formats
|
|||||
|
HDMI eARC
|
Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,DTS,DTS ES,DTS 96 / 24,DTS: X,LPCM: 2ch / 5.1ch / 7.1ch
|
||||
|
OPTICAL INPUT
|
Dolby Digital,Dolby Digital Plus,Dolby Digital Plus / Atmos,DTS,LPCM 2ch,MPEG2-AAC,MPEG4-AAC
|
||||
|
BLUETOOTH® COMMUNICATION (RECEIVER)
|
AAC,SBC
|
||||
|
Sound Function
|
|||||
|
Sound Mode
|

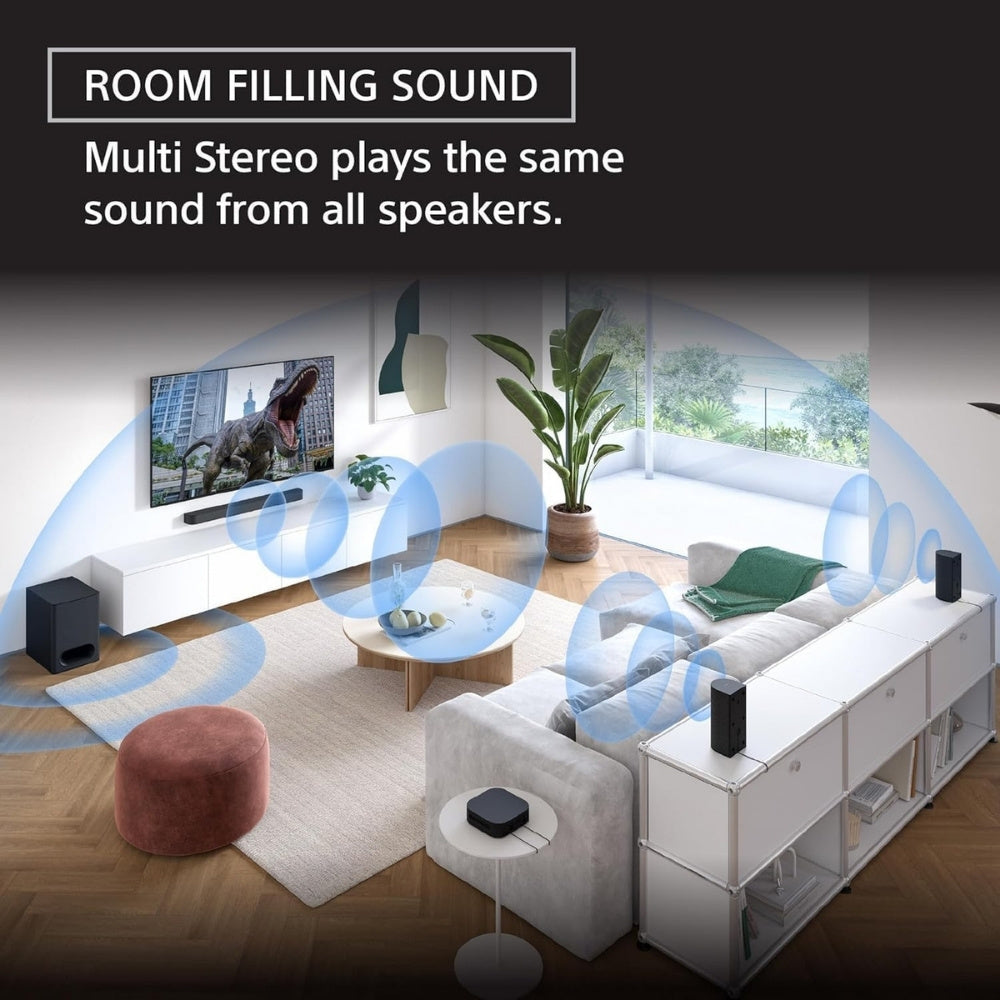

Sound Field (Upmix / Multi Stereo)
|
||||
|
Sound Effect
|
Night Mode,Voice Mode
|
||||
|
Virtual Surround Technology
|
S-Force PRO,Vertical Surround Engine,DTS Virtual: X
|
||||
|
SOUND ENHANCEMENT TECHNOLOGY
|
DSEE
|
||||
|

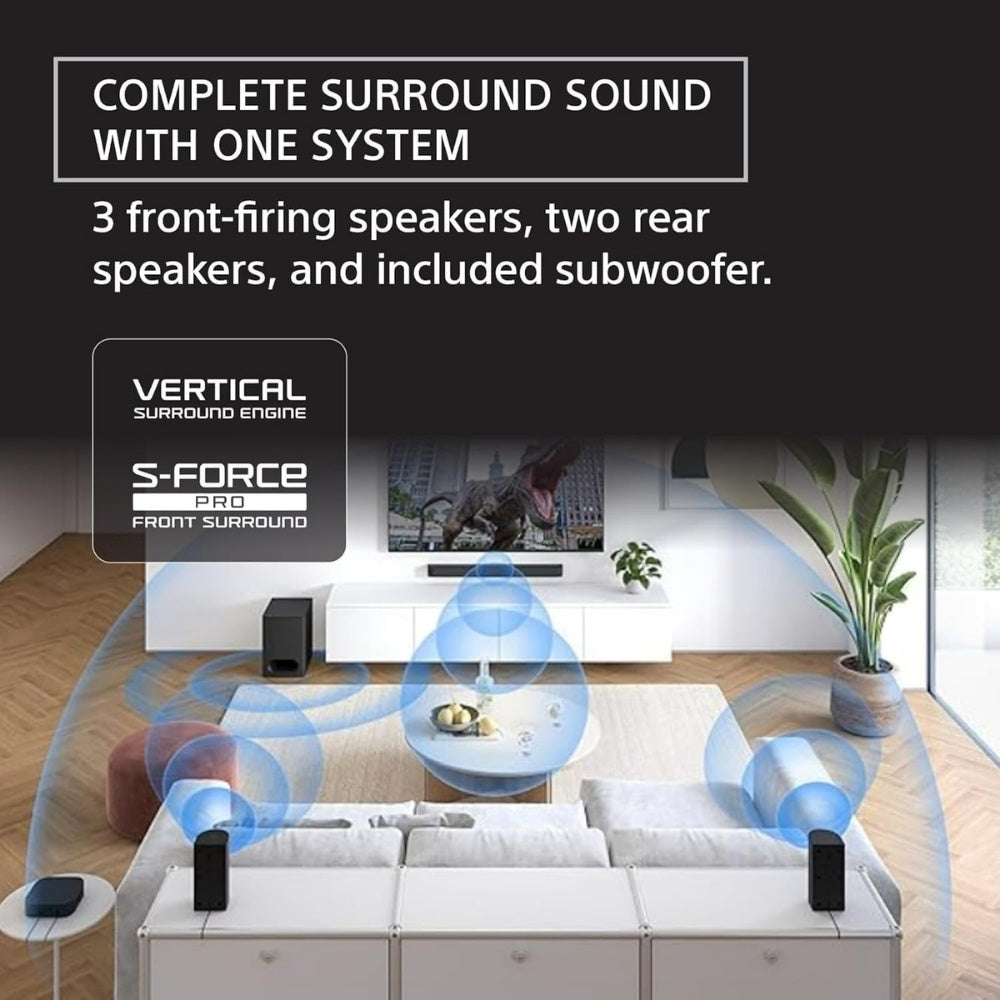

Speaker Layout
|
|||||
|
Speaker Structure
|
5.1 ch (10 Speaker Units)
|
||||
|

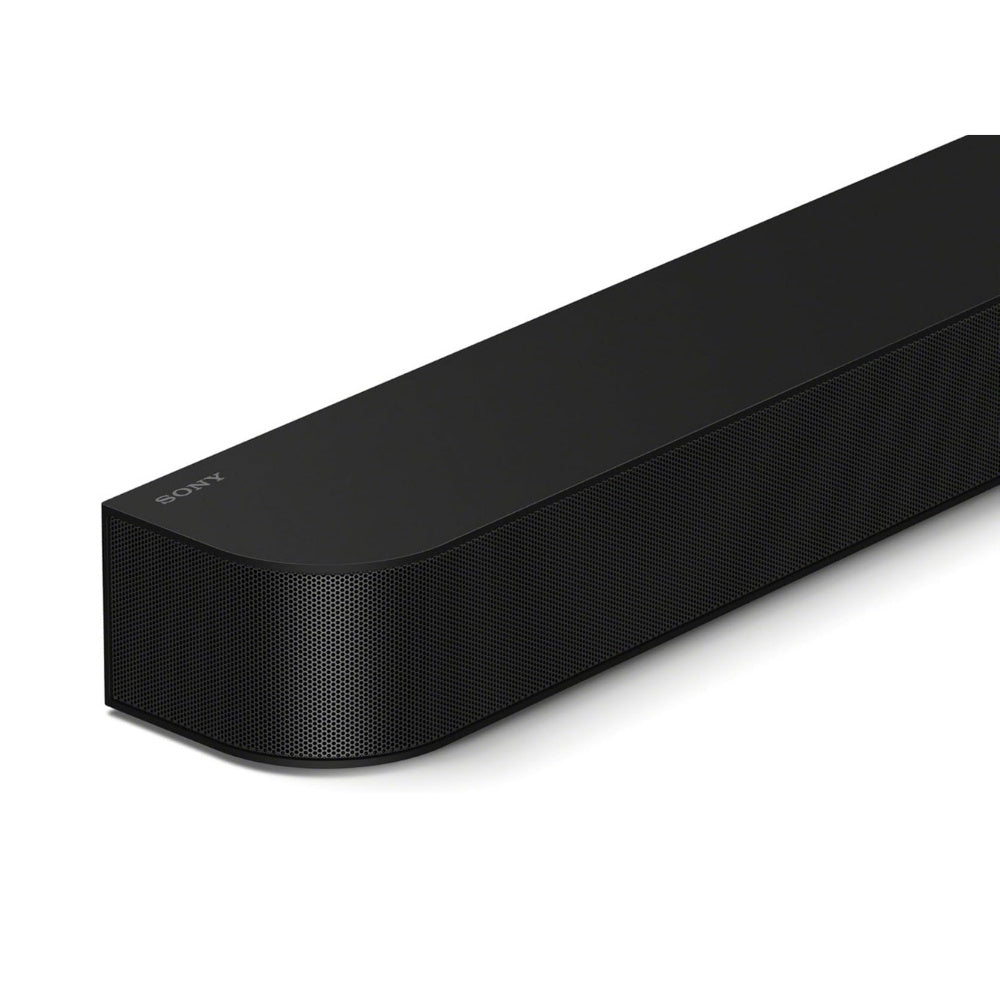

bar speaker
|
SS-S60
|
||||
|
Subwoofer
|
SA-WS60
|
||||
|
Rear speaker
|
SS-SS60
|
||||
|
Application
|
|||||
|

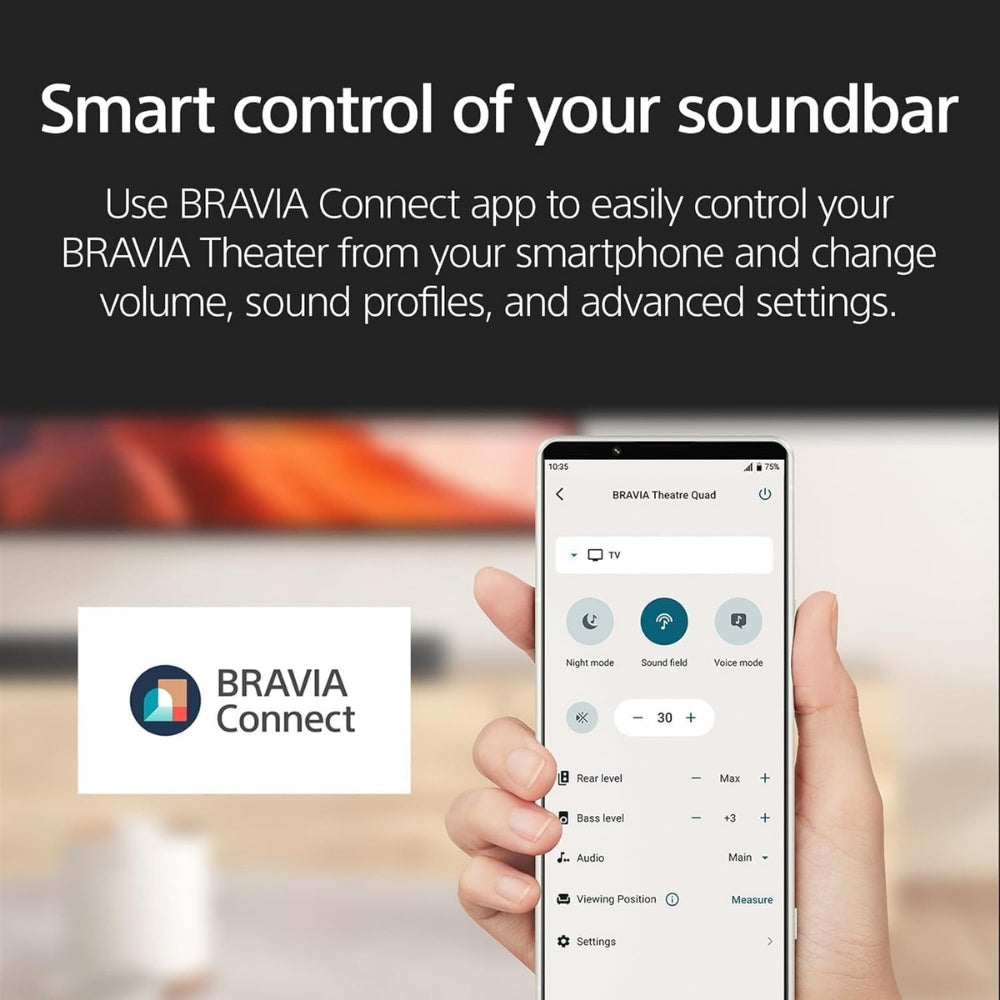

SONY | BRAVIA CONNECT
|
Yes
|
||||
|
Function with Bravia
|
|||||
|
FUNCTION WITH BRAVIA
|
Voice Zoom 3™, Quick Setting Menu
|
||||
|
Details
|
|||||
|
POWER CONSUMPTION *APPROX
|
Subwoofer 60 W / Wireless Amp 30 W
|
||||
|
Wall-mountable
|
Yes
|
||||
|
Eco and energy saving
|
|||||
|
Power Consumption (Off Mode)
|
Subwoofer: not available, Wireless Amp: 0.3 W
|
||||
|
POWER CONSUMPTION (STANDBY MODE / LOW POWER MODE)
|
Subwoofer: 0.5 W, Wireless Amp: not available
|
||||
|
OFF MODE / STANDBY MODE / LOW POWER MODE ACTIVATED
|
Subwoofer: After 20 minutes, Wireless Amp: not available
|
||||
|
Power Consumption (Network Standby Mode) – Terminals
|
Subwoofer: 0.5 W (HDMI CEC) , 2.0 W (Bluetooth® function, all terminals and networks connected) , Wireless Amp: 0.5 W (Wireless Audio, all terminals and networks connected)
|
||||
|
Networked Standby Mode Activated – Terminals
|
Subwoofer: After 20 minutes (HDMI CEC, Bluetooth® function) / Wireless Amp: After 20 minutes (Wireless Audio)
|
||||
|
Wireless Network(s) On/Off Switch
|
Subwoofer: Press (Muting) , (Volume) -, and (Volume) + in that order within 5 seconds on the supplied remote control to turn on / off the Bluetooth® function. , Wireless Amp: not available
|
||||
|
