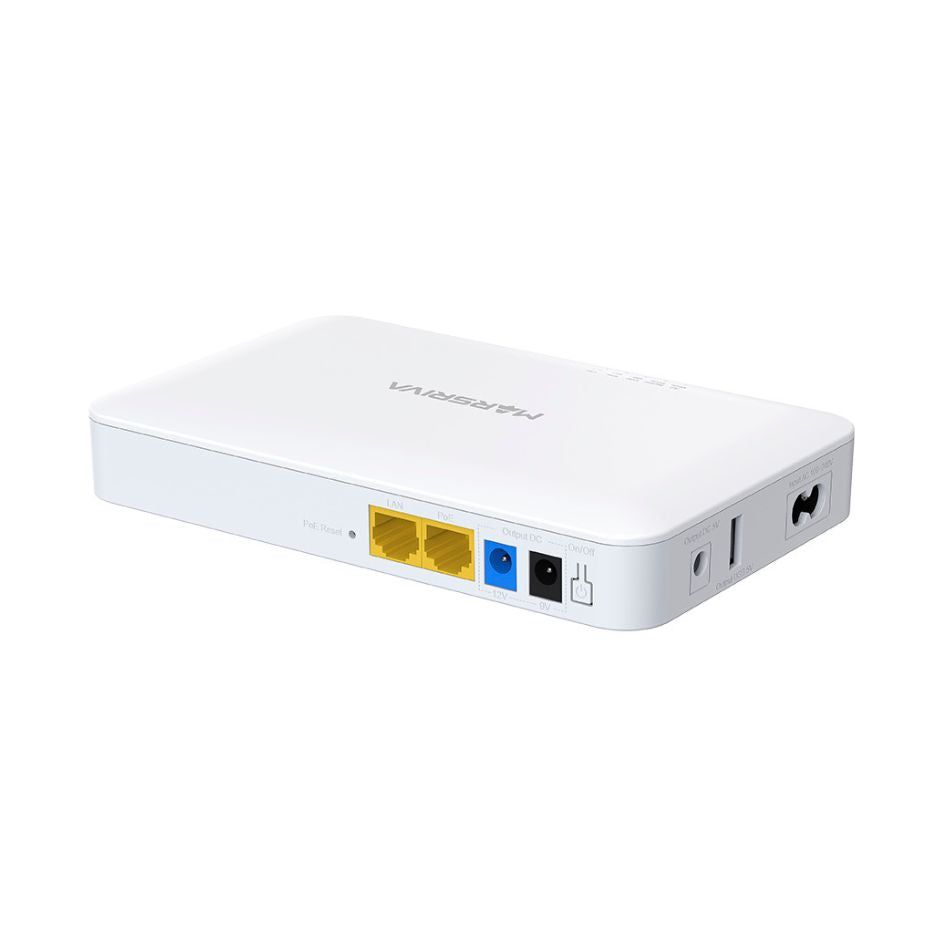

Marsriva KP6 Smart Mini DC UPS 10000mAh

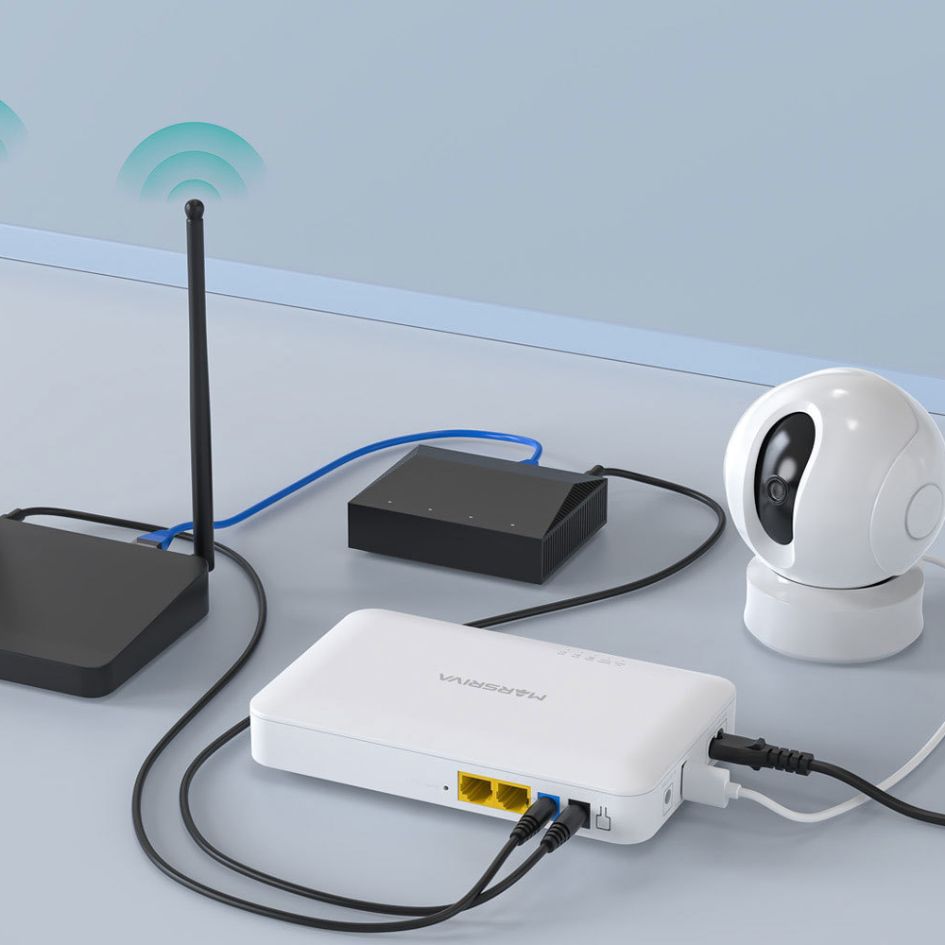

The Marsriva KP6 Smart Mini DC UPS is designed to keep essential low-power devices running during electricity cuts, power shifts, or unstable power conditions. With a 10000mAh lithium-ion battery, 36Wh capacity, 18W maximum output, 0ms AC-to-DC transfer, Passive PoE, 3 DC outputs, USB output, flame-retardant housing, and wall-mount support, it is a practical backup power solution for Wi-Fi routers, ONU devices, CCTV equipment, modems, and other compatible DC-powered devices.
Key Features
-
Keeps Wi-Fi Powered During Outages
Helps keep your router or compatible network device running when the electricity cuts.
-
10000mAh Battery Capacity
Built-in lithium-ion battery provides backup power for supported devices.
-
36Wh High-Capacity Battery
Designed for extended runtime depending on the connected device power consumption.
-
18W Maximum Output
Suitable for a wide range of low-power DC devices within the supported output limit.
-
0ms Seamless Switching
Automatically switches from AC power to battery mode with no transfer delay, helping devices stay powered without interruption.
-
Multi-Device Power Output
Includes 1 Passive PoE port, 3 DC outputs, and 1 USB output to power multiple compatible devices.
-
Passive PoE Support
Provides 24V / 0.75A PoE output for compatible network equipment.
-
Multiple DC Voltage Outputs
Supports 12V, 9V, and 5V DC output options for different device requirements.
-
USB 5V Output
USB port supports 5V / 2.1A output for compatible USB-powered devices.
-
V-0 Flame-Retardant Housing
ABS + PC casing helps improve safety and durability.
-
Air-Cooling System
Supports stable long-term operation by helping with heat dissipation.
-

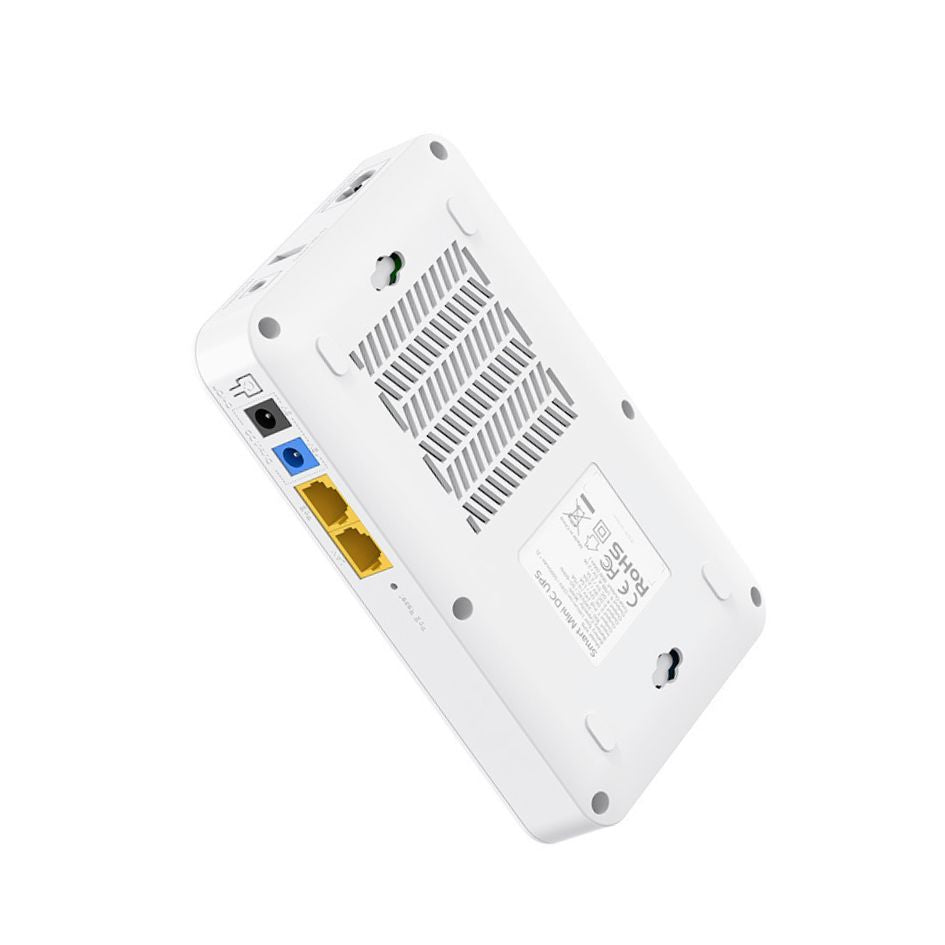

Wall-Mount Design
Built-in wall-mount slots allow simple installation near routers, modems, or network equipment.
Technical Specifications
-
Product Type: Smart Mini DC UPS
-
Brand: Marsriva
-
Series: KP6 Series
-
Battery Capacity: 36Wh
-
Battery Type: Lithium-ion battery
-
Battery Rating: 3.6V / 10000mAh
-
Battery Cell Structure: 5000mAh × 2
-
Material: ABS + PC
-
Input: 100–240VAC, 50–60Hz
-
Total Output: 18W max
-
PoE Output: 24V / 0.75A
-
DC 1 Output: 12V / 1.5A
-
DC 2 Output: 9V / 2.0A
-
DC 3 Output: 5V / 2.1A
-
USB Output: 5V / 2.1A
-
Transfer Time: 0ms AC-to-DC switching
-
Housing Safety: V-0 flame-retardant casing
-
Cooling: Air-cooling system
-
Installation: Wall-mount support
-
Weight: 397g
-

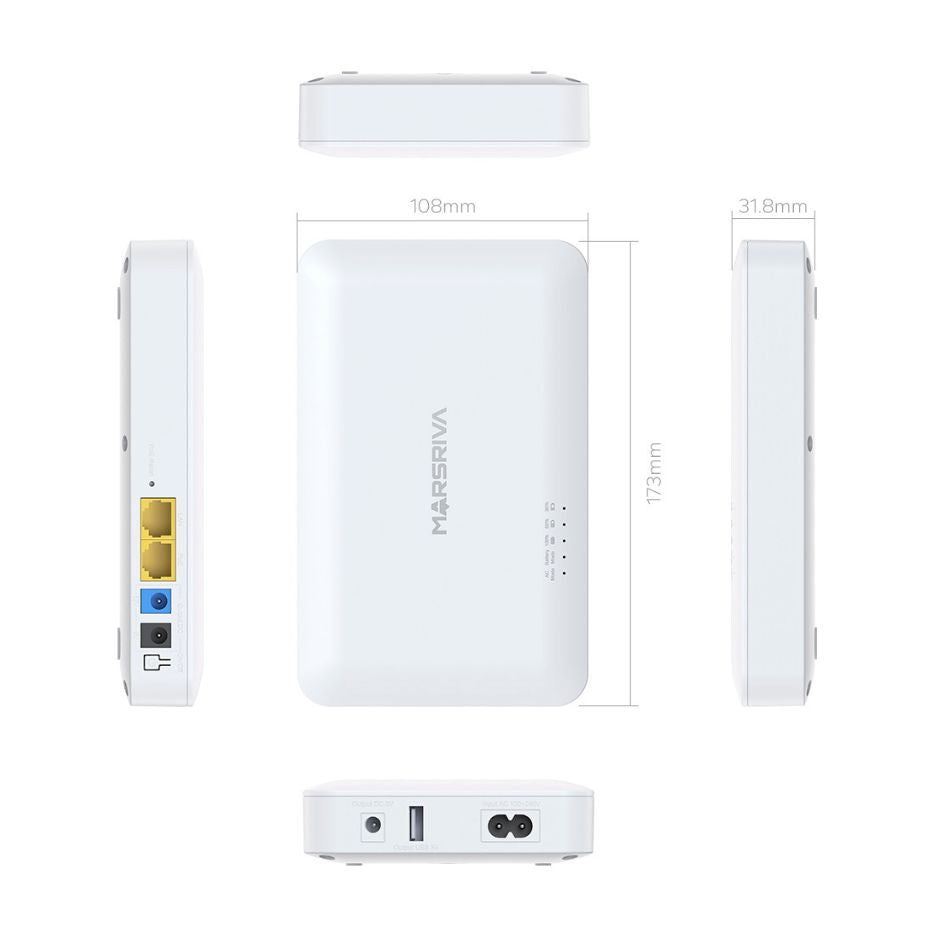

Unit Dimensions: 173 × 108 × 31.8mm
Output Ports
- 1 × Passive PoE output
- 3 × DC outputs
- 1 × USB output
Battery & Runtime
-
Battery Capacity: 10000mAh / 36Wh
-
Maximum Output: 18W
-
Battery Type: Lithium-ion
Actual backup time depends on the connected device power consumption, number of connected devices, battery condition, and output voltage used.
Operating Conditions
-
UPS Mode Operating Temperature: 0°C to 40°C
-
Battery Mode Operating Temperature: -15°C to 50°C
-
Operating Humidity: Less than 75% RH
Best Use Cases
- Wi-Fi routers
- Fiber ONU devices
- Modems
- CCTV cameras
- Small network devices
- Low-power DC devices
- Home internet backup
- Office network backup
- Areas with frequent power cuts
