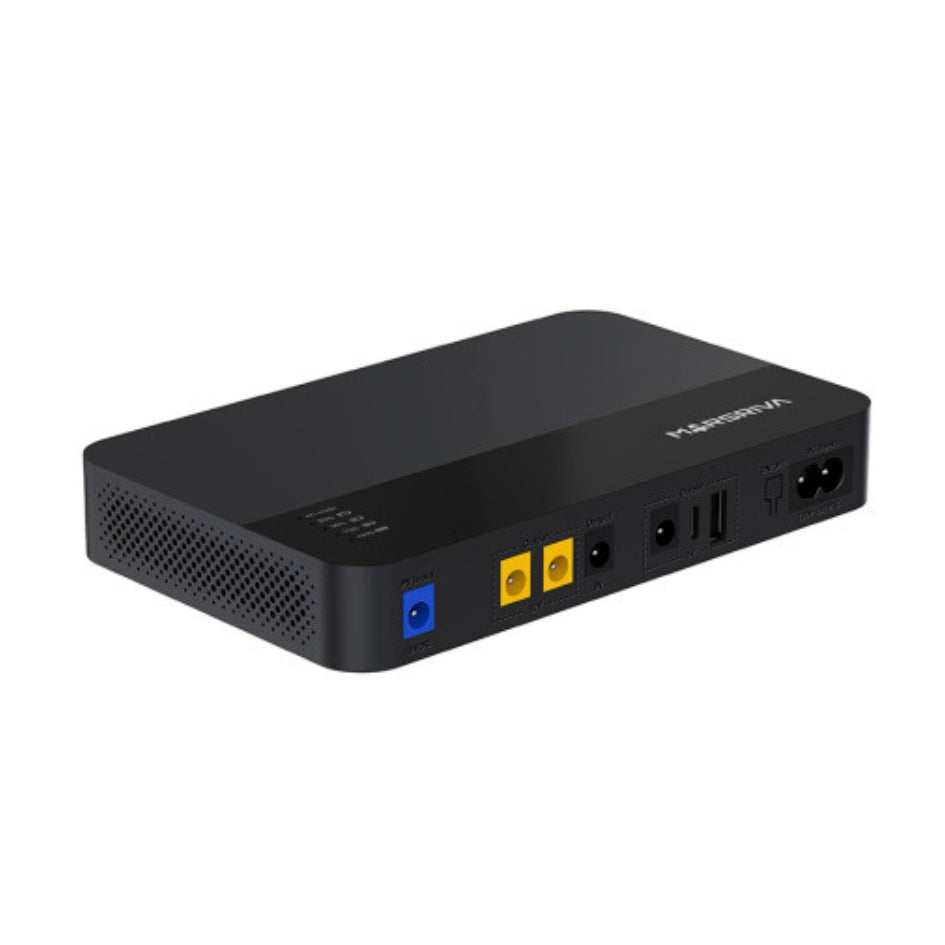

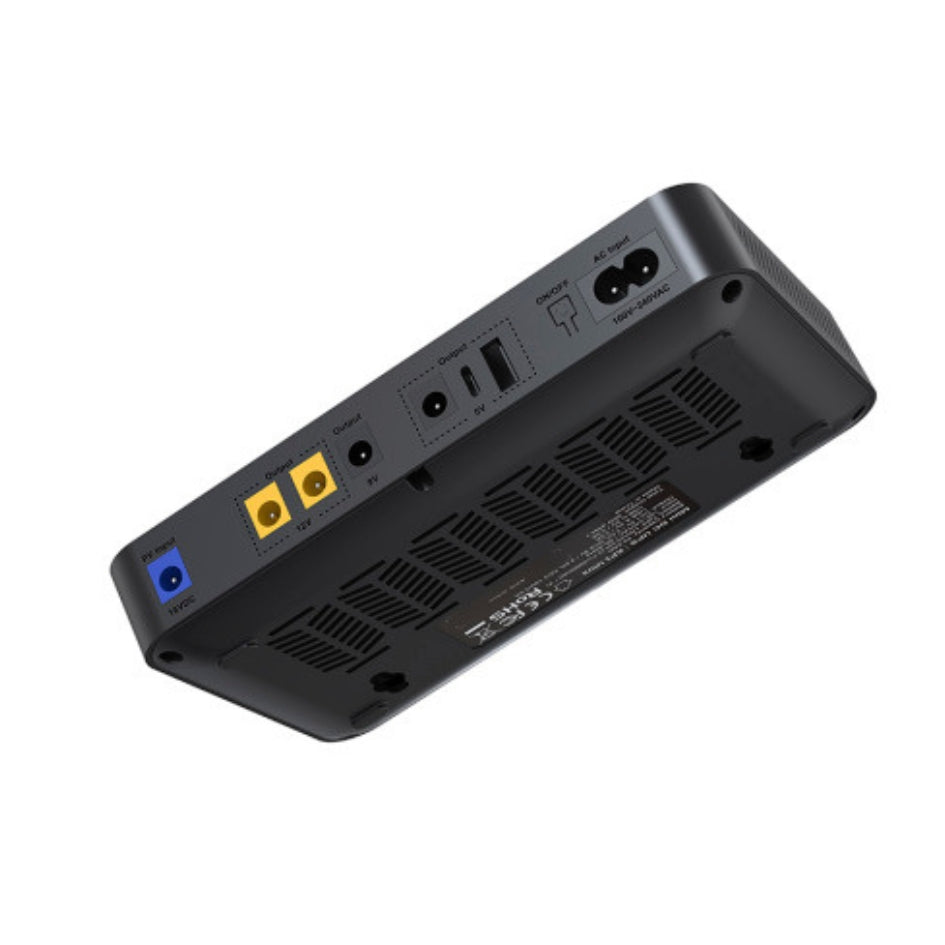

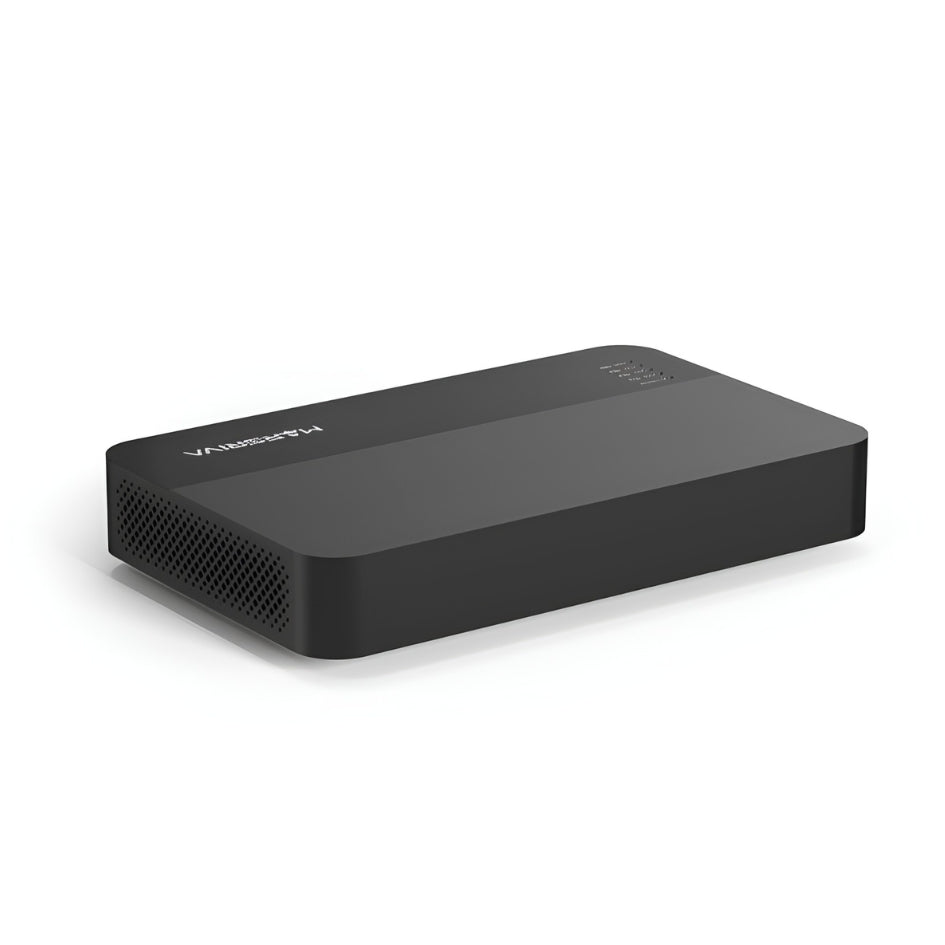

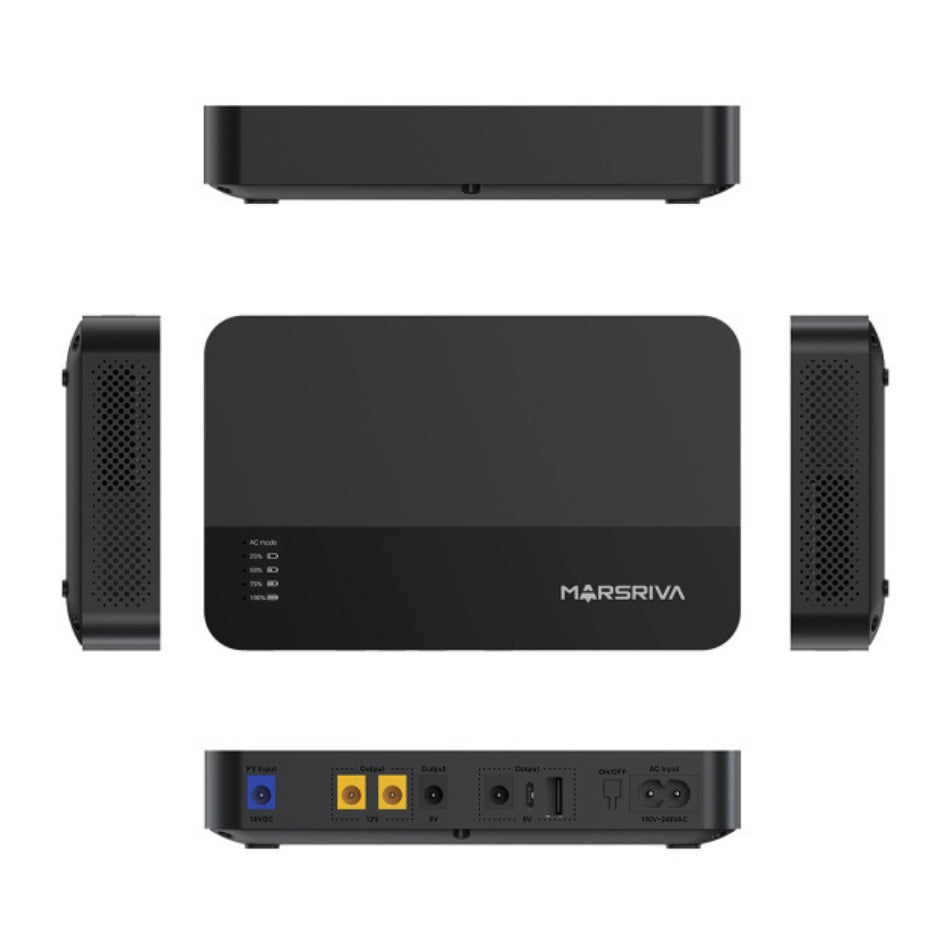

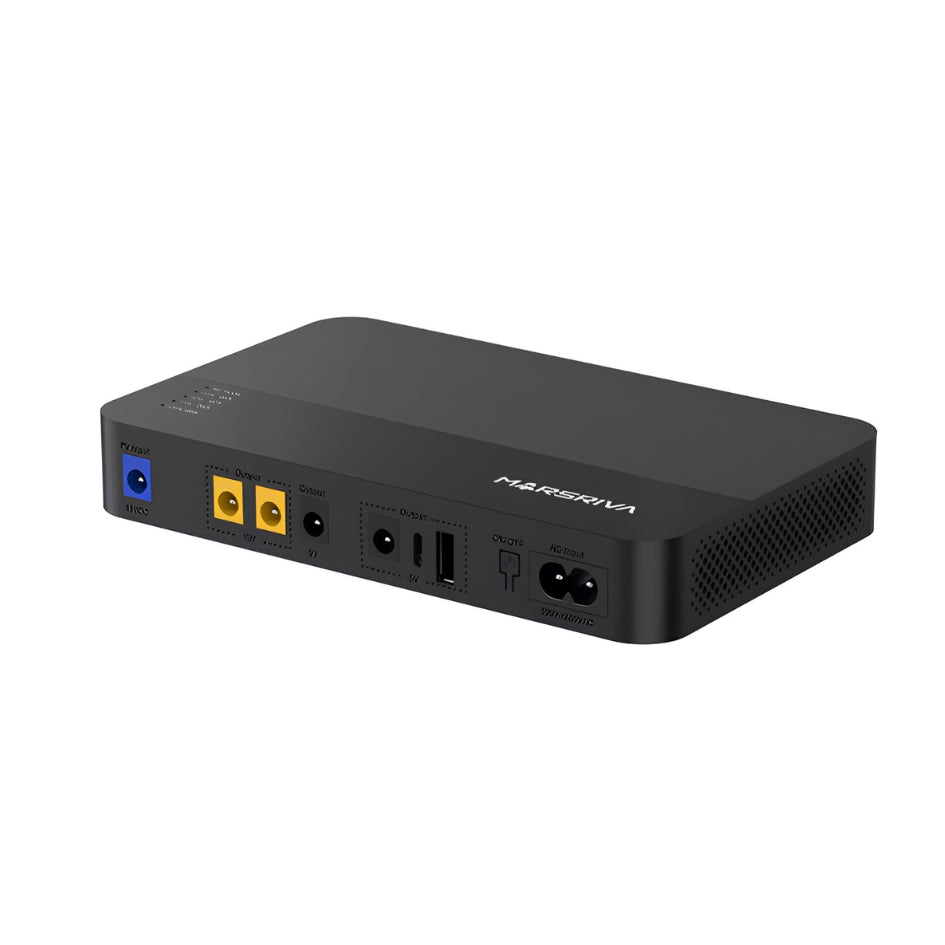

Marsriva KP1 Plus Mini DC UPS
The Marsriva KP1 Plus Mini DC UPS is designed to keep essential low-power devices running during electricity cuts or power switching. With a 59.2Wh lithium-ion battery, 16000mAh battery configuration, 4 DC outputs, USB-C and USB-A output, 0ms AC-to-DC transfer, wall-mount support, and flame-retardant casing, it is a practical backup power solution for Wi-Fi routers, modems, ONU devices, CCTV accessories, and other compatible low-power DC devices.
Key Features
-
Keeps Wi-Fi Power On
Helps keep compatible routers, modems, and network devices powered during power interruptions.
-
59.2Wh Lithium-Ion Battery
Built with a lithium-ion battery system designed for backup power and daily UPS use.
-
16000mAh Battery Configuration
Uses 3.7V / 4000mAh × 4 battery cells for extended runtime depending on connected device power usage.
-
4 DC Outputs + USB Ports
Provides multiple output options for powering compatible DC devices and USB-powered devices.
-
0ms Seamless Switching
AC-to-DC transfer helps connected devices continue running without interruption during power changes.
-
Multiple DC Voltage Options
Includes 12V, 9V, and 5V DC outputs for wider compatibility with supported devices.
-
USB-C & USB-A Output
Offers additional 5V output for compatible USB-powered devices.
-
Wall-Mount Installation
Built-in wall-mount slots make installation easier for router areas, network cabinets, or home setups.
-
Efficient Air Cooling
Air-cooling design helps maintain stable operation during long UPS usage.
-
V-0 Flame-Retardant Casing
ABS + PC casing helps improve safety and durability for daily use.
Technical Specifications
-
Product Type: Mini DC UPS
-
Brand: Marsriva
-
Model: KP1 Plus
-
Battery Capacity: 59.2Wh
-
Battery Type: Lithium-ion
-
Battery Specification: 3.7V / 4000mAh × 4
-
Material: ABS + PC
-
AC Input: 100VAC–280VAC
-
PV Input: 12VDC–18VDC
-
Total Output: 18W Max
-
Net Weight: 483g
-
Dimensions: 173 × 108 × 31.8mm
-
Cooling: Air-cooling
-
Mounting: Wall-mount slots
-
Use Case: Router backup, modem backup, network device backup, CCTV accessory power, low-power DC device backup, and USB device power
Output Ports
-
DC1 Output: 12V / 1.5A
-
DC2 Output: 12V / 1.5A
-
DC3 Output: 9V / 2.0A
-
DC4 Output: 5V / 2.4A
-
USB-C Output: 5V / 2.4A
-
USB-A Output: 5V / 2.4A
-
Total Output Power: 18W Max
Input
-
AC Input: 100VAC–280VAC
-
PV Input: 12VDC–18VDC
Battery & Runtime
-
Battery Capacity: 59.2Wh
-
Battery Configuration: 3.7V / 4000mAh × 4
- Runtime depends on the connected device power consumption, output voltage, number of devices connected, and battery condition.
Operating Conditions
-
UPS Mode Operating Temperature: 0°C–40°C
-
Battery Mode Operating Temperature: -15°C–50°C
-
Operating Humidity: Less than 75%RH
-
Storage Temperature: 15°C–35°C
-
Storage Humidity: 40–75%RH
Best Use Cases
- Wi-Fi router backup
- Internet modem backup
- ONU / fiber device backup
- Network switch backup
- CCTV accessory backup
- Low-power DC device backup
- Home internet during electricity cuts
- Office internet continuity
- Small network cabinet setup
- Wall-mounted router area
Compatibility
- Compatible 12V devices up to 1.5A per supported DC output
- Compatible 9V devices up to 2.0A
- Compatible 5V devices up to 2.4A
- USB-powered 5V devices
- Routers, modems, and small network devices within the 18W total output limit
- Devices using compatible DC connector sizes and polarity
